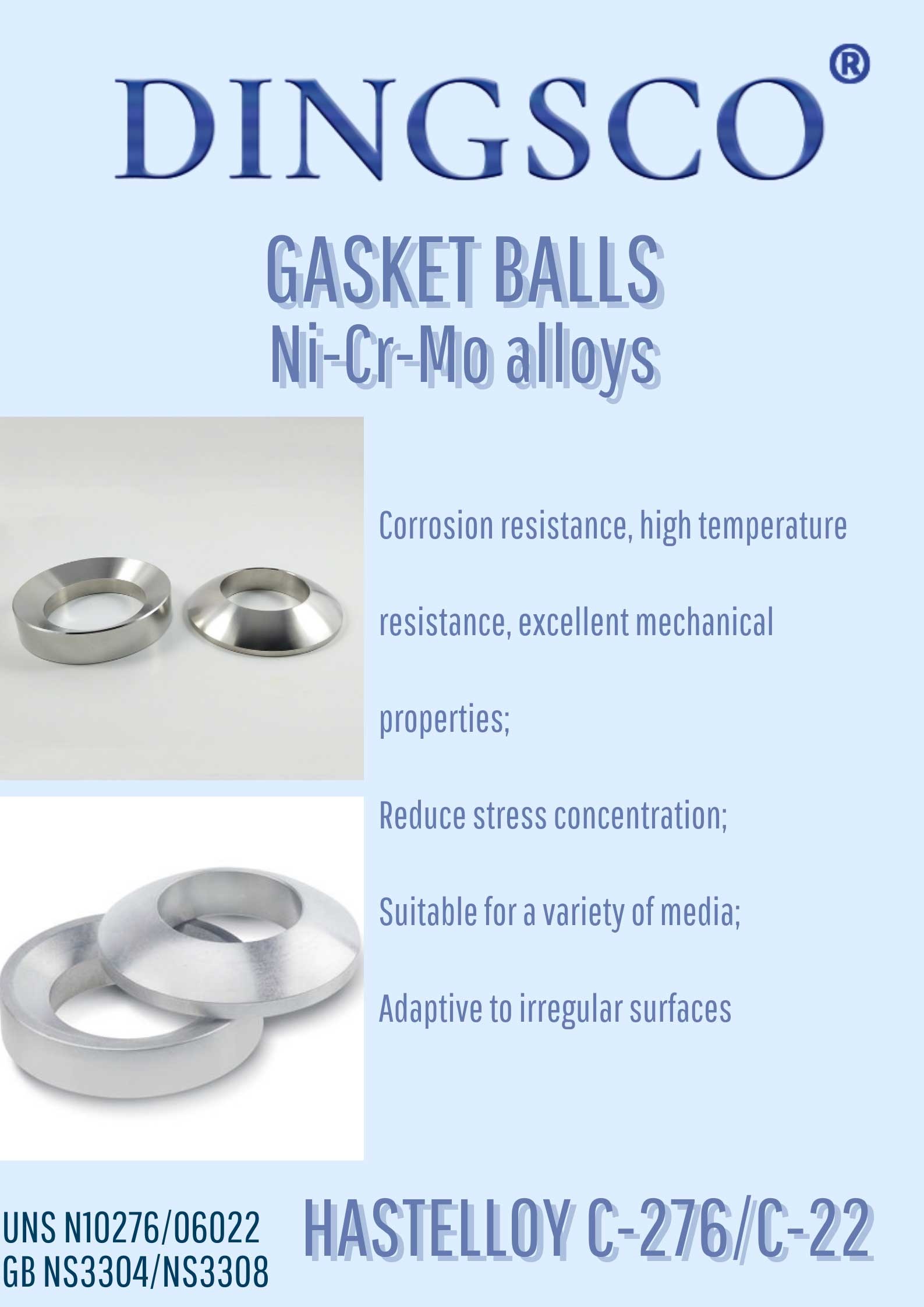

UNS N10276 N06022 Gasket Ball Nickel Alloy Concave Convex Conical Gasket

Name: UNS N10276 N06022 Gasket Ball Nickel Alloy Concave Convex Conical Gasket
Brand: DINGSCO
Price: 1 USD

Buy cheap UNS N10276 N06022 Gasket Ball Nickel Alloy Concave Convex Conical Gasket product

Brand Name : DINGSCO

Model Number : According to customers' requests

Certification : ISO 9001：2015, PED 2014/68 EU, API 6A, API-20B, TSG, NORSOK

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : (Sample order) 7 days

Packaging Details : According to customers' requests

Product Name : Nickel Alloy Concave-Convex Conical Combined Gasket

Material : Hastelloy C-276/UNS N10276/DIN W.NR.2.4819/GB NS3304; Hastelloy C-22/UNS NO6022/DIN W.Nr.2.4602/GB NS3308

Type : Spherical combination gasket

Function : Connection fastening

Application : Mechanical industry, electrical industry......

Processing Object : Metal

Contact Now

UNS N10276 N06022 Gasket Ball Nickel Alloy Concave-Convex Conical Combined Gasket

Nickel alloy spherical washers have the following advantages in practical applications:

Excellent corrosion resistance: Nickel alloys have excellent corrosion resistance, especially in environments where they are resistant to oxidizing and reducing acids, chloride ion stress corrosion cracking, and ammonia. This makes nickel alloy spherical washers ideal for chemical industries, marine engineering and other corrosive environments.
High temperature resistance: Nickel alloy can withstand high temperature environments, maintain strength and stability at high temperatures, and is suitable for applications under high temperature conditions.
Good mechanical properties: Nickel alloy has high strength and toughness, can withstand large mechanical loads and vibrations, and is suitable for occasions requiring high mechanical properties.
Adaptability: The design of the spherical gasket allows it to adapt to irregular surfaces, providing even pressure distribution, allowing for certain displacement and deviation while maintaining a seal.
Easy to install and remove: The structure of the spherical gasket makes it easy to install and remove, especially in equipment that requires frequent maintenance or replacement.
Reduce stress concentration: The rounded design of spherical washers helps disperse pressure and reduce stress concentration on bolts and joint surfaces, thereby extending the service life of the connection.
Suitable for a variety of media: Nickel alloy spherical washers are suitable for a variety of media, including gases, liquids and chemicals, making them very practical in a variety of industrial applications.

In summary, nickel alloy spherical washers have been widely used in extreme working conditions in chemical industry, petroleum, marine engineering, aerospace and other fields due to their corrosion resistance, high temperature resistance, and excellent mechanical properties.

Grade	Chemical Composition(%)
Grade	Chemical Composition(%)
HASTELLOY C-276	Ni	Co	Cr	Mo	W	P	Fe
	Remainder	2.5max	14.5-16.5	15.0-17.0	3.0-4.5	0.04max	4.0-7.0
	Si	Mn	C	V	S
	0.08max	1.0max	0.01max	0.35max	0.03max
HASTELLOY C-22	Ni	Mo	Cr	Fe	Co	P	W
	Remainder	12.5-14.5	20.0-22.5	2.0-6.0	2.5max	0.02max	2.5-3.5
	V	C	Mn	Si	S
	0.35max	0.015max	0.5max	0.08max	0.02max

Grade	UNS	DENSITY	DIN	GB	Tensile Strength (Mpa min)	Yield Strength (Mpa min)	Reduction of Area, min (%)	Elongation min(%)	Hardness (HRC)

HASTELLOY C-276	UNS N10276	8.87g/cm³	W.NR.2.4819	NS3304	690 MPa min	283 MPa min	….	40% min	HRC 35 max



HASTELLOY C-22	UNS N06022	8.69g/cm³	W.NR.2.4602	NS3308	690 MPa min	310 MPa min	….	60% min	HRC 41 max

HASTELLOY C-276/C-22

Form	ASTM
Rod	B 574
Plate, sheet and strip	B 575, B 906
Seamless pipe and tube	B 622
Welded pipe	B 619, B 775
Welded tube	B 626, B 751
Fitting	B 366
Forged or rolled pipe flange and forged fitting	B 462
Billet and bar for reforging	B 472
Forging	B 564
